Settings¶
The settings section provides a read-only view of the server's runtime configuration. Settings are loaded from the acteon.toml file at startup.
Note
The settings pages display a sanitized snapshot of the configuration. Secrets such as API keys, connection passwords, and header values are never exposed. Instead, the UI shows indicators like "API Key Configured: Yes/No".

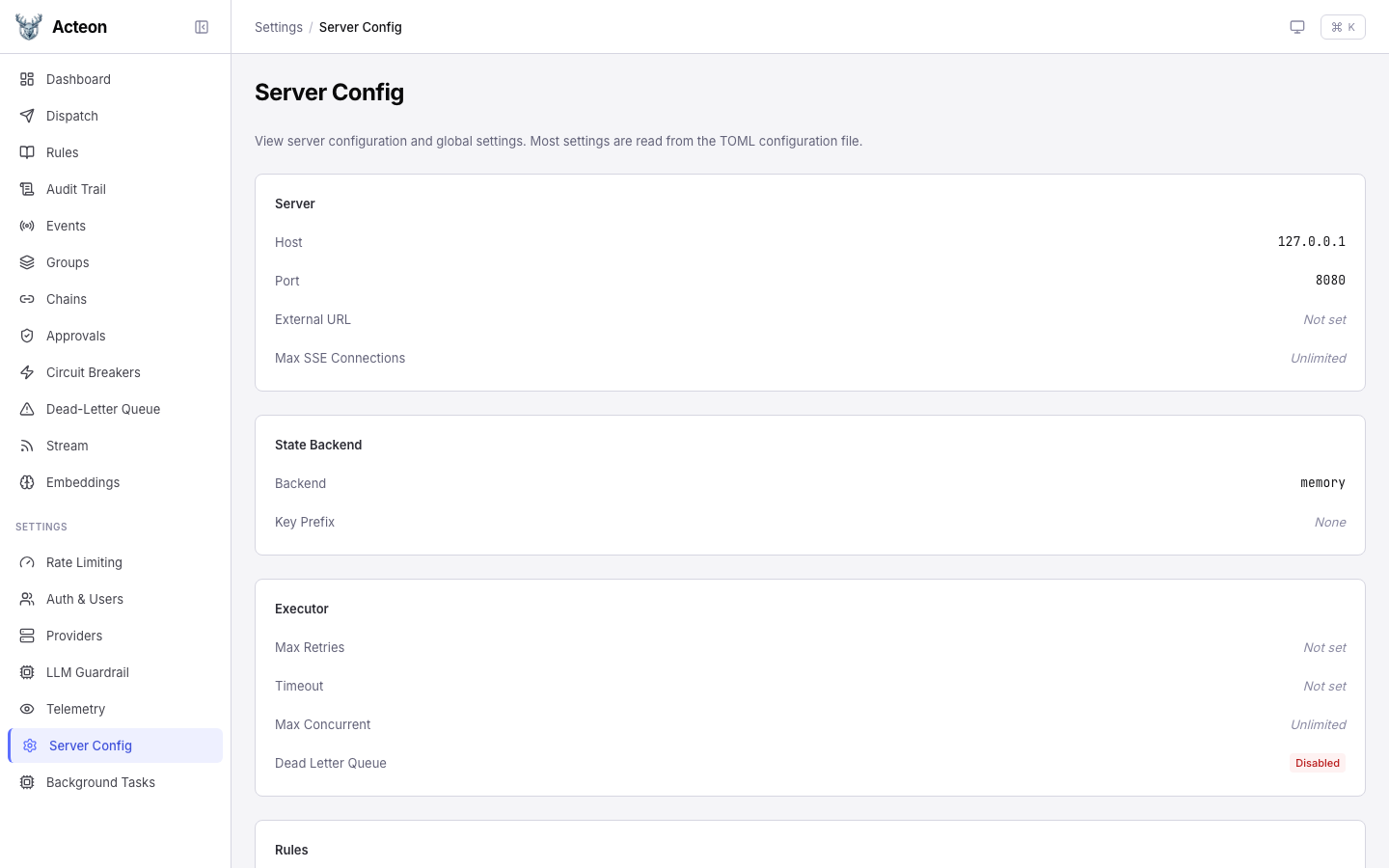

Server Config¶
The main settings page shows configuration cards for each subsystem:
| Section | What it shows |
|---|---|
| Server | Bind host, port, external URL, max SSE connections |
| State Backend | Backend type (memory, Redis, PostgreSQL, etc.), key prefix |
| Executor | Max retries, timeout, concurrency limits, DLQ status |
| Rules | Rules directory path, default timezone |
| Audit | Enabled status, backend, TTL, payload storage, redaction config |
| Chains | Max concurrent advances, completed chain TTL, chain definitions |
| Theme | Switch between System, Light, and Dark color schemes |

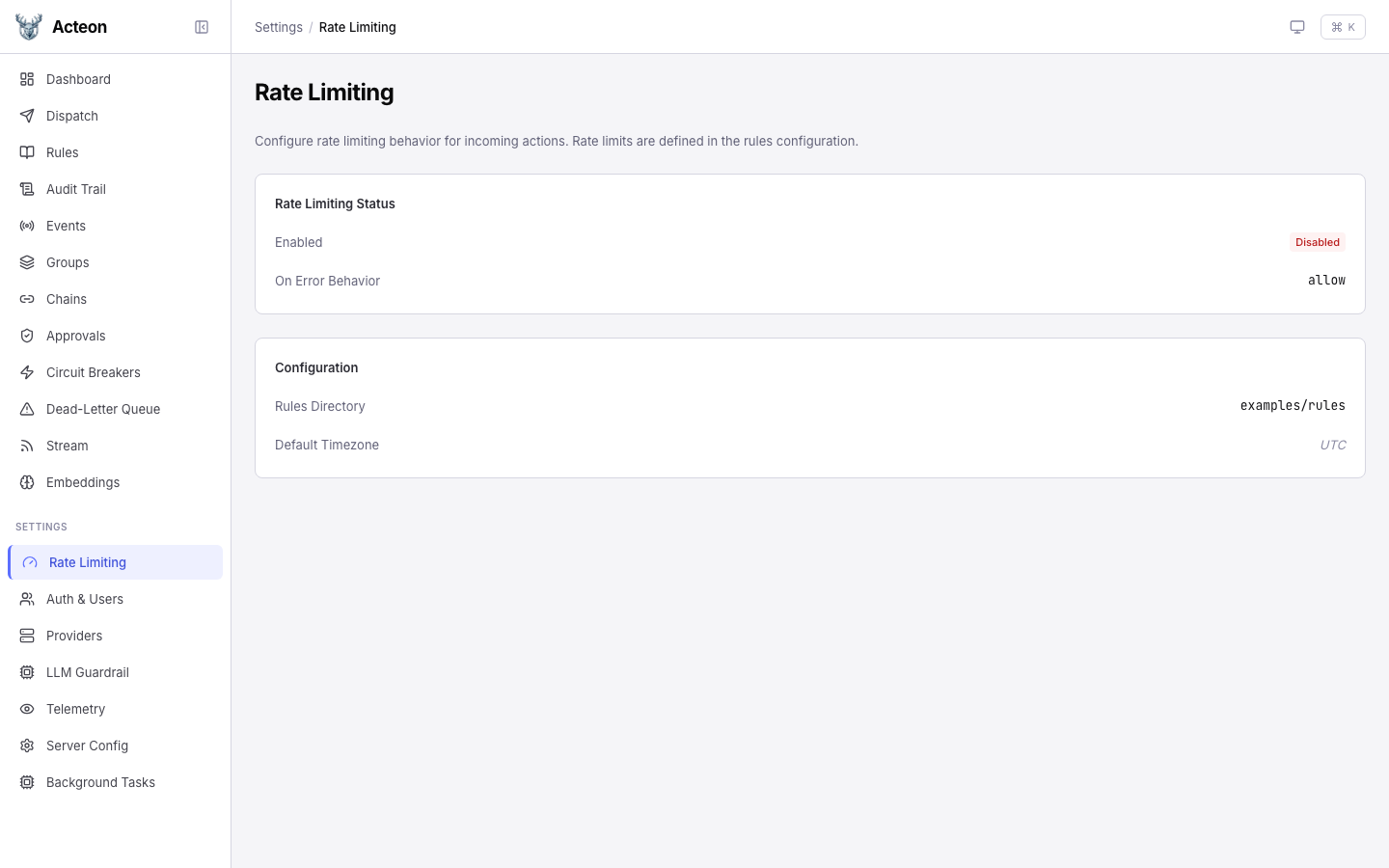

Rate Limiting¶
View rate limiting status and the error behavior policy (allow or deny when the state store is unavailable).
Auth & Users¶
View authentication status, config file path, and whether file-watch mode is active for automatic config reloading.

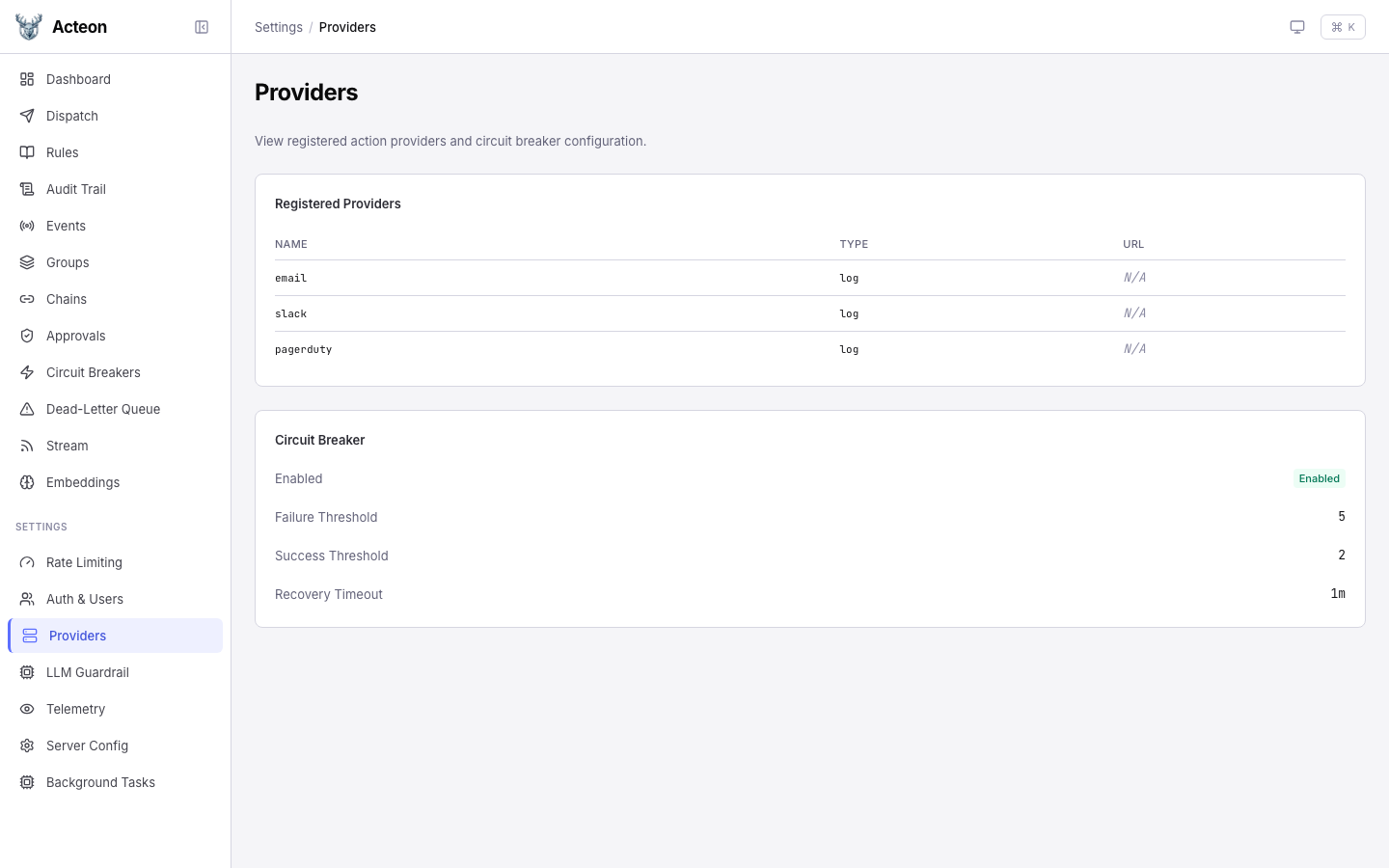

Providers¶
A table of registered providers showing name, type, and URL. Below it, the global circuit breaker configuration with failure/success thresholds and recovery timeout. Providers with per-provider overrides are listed separately.
LLM Guardrail¶
View LLM guardrail configuration including the API endpoint, model, API key status, fail-open mode, and model parameters (temperature, max tokens, timeout). If a default policy is configured, a truncated preview is shown. Per-action-type policy overrides are listed by key.
When the embedding provider is enabled, its configuration is shown here as well.
Telemetry¶
View OpenTelemetry configuration: endpoint, service name, protocol, sampling ratio, and exporter timeout.

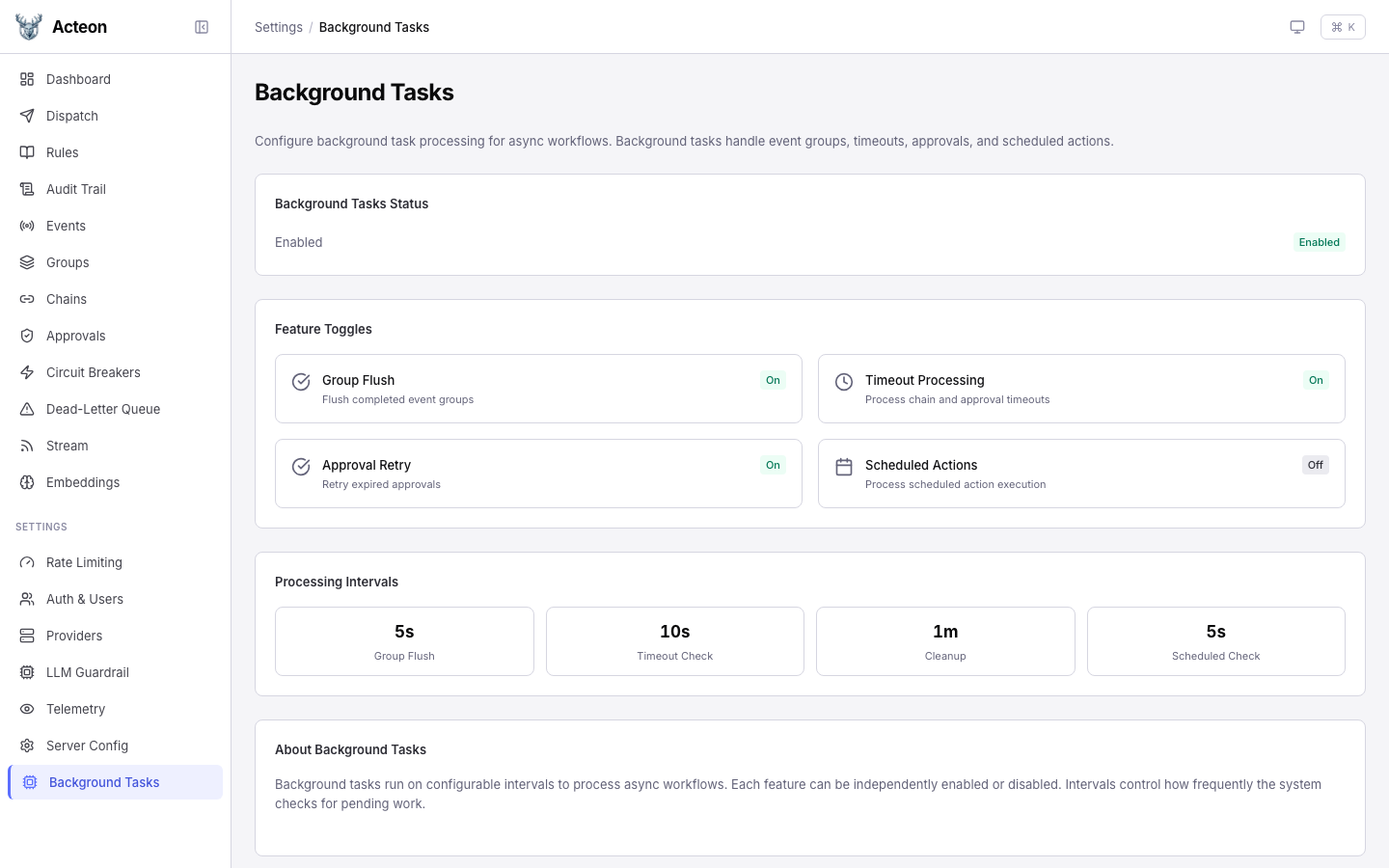

Background Tasks¶
View the status of background processing features:
- Group Flush -- flush completed event groups
- Timeout Processing -- process chain and approval timeouts
- Approval Retry -- retry expired approvals
- Scheduled Actions -- execute actions at their scheduled time
Each feature can be independently enabled or disabled. Below the toggles, processing interval cards show how frequently each background job runs.
API Endpoint¶
All settings data comes from a single endpoint:
The response is a sanitized ConfigSnapshot that masks secrets:
- API keys become
has_api_key: true/false - Connection URLs become
has_url: true/false - Provider headers become
header_count: 3 - Policy text is truncated to 100 characters
- Circuit breaker provider overrides show only names
